Home / FortiSwitch Rugged
FortiSwitch Rugged Durable, High Mean Time Between Failure Network Switches
Models: 108F, 112F, 216F, 424F

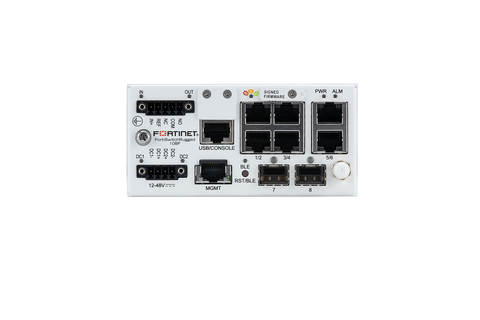

FortiSwitchRugged-108F
SKU: FSR-108F
Switching Capacity16 Gbps
Forwarding Throughput (PPS)23.8 Mpps
Form FactorDIN-Rail Mountable
PoE SupportNone
- 6x GE RJ45 Ports
- 2x GE SFP Ports
- 1x RJ-45 Console Port
$1,418.00

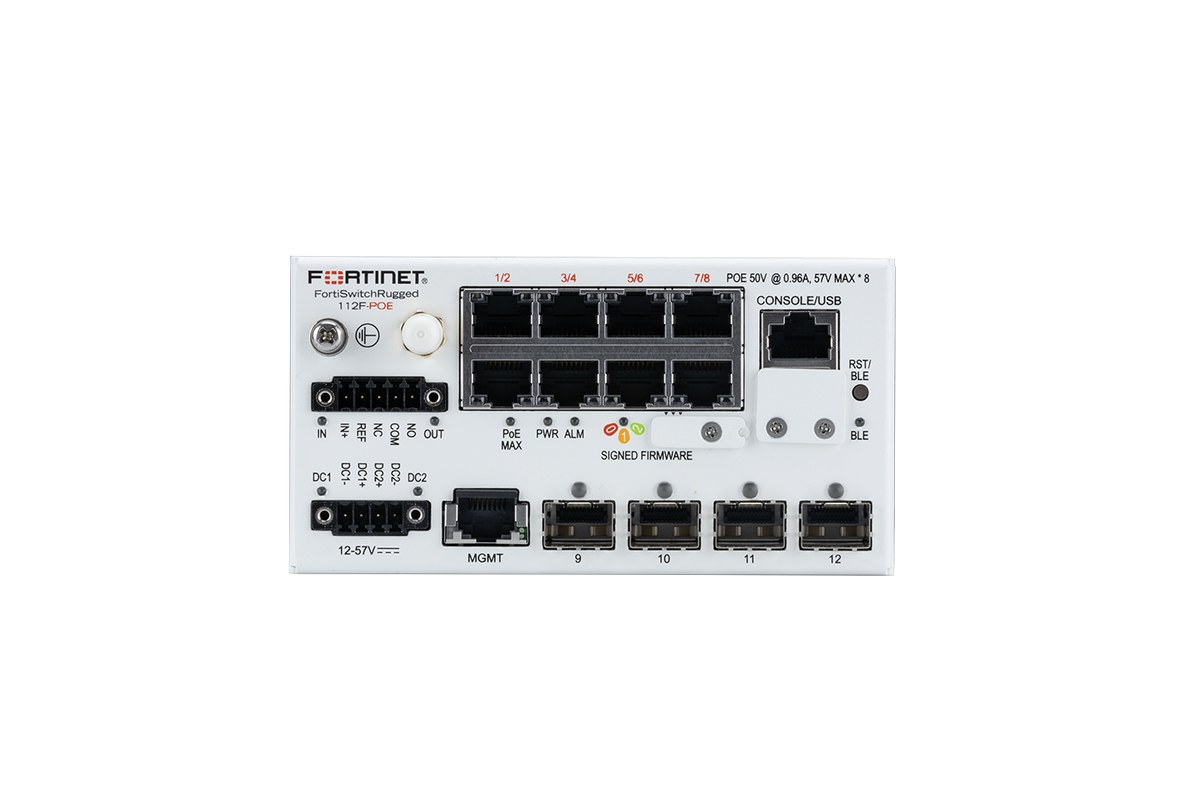

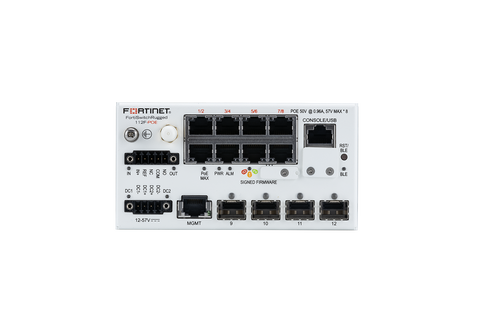

FortiSwitchRugged-112F-POE
SKU: FSR-112F-POE
Switching Capacity24 Gbps
Forwarding Throughput (PPS)35.7 Mpps
Form FactorDIN-Rail Mountable
PoE Power Budget240 W
- 8x GE RJ45 Ports (PoE)
- 4x GE SFP Ports
- 1x RJ-45 Console Port
$2,095.00

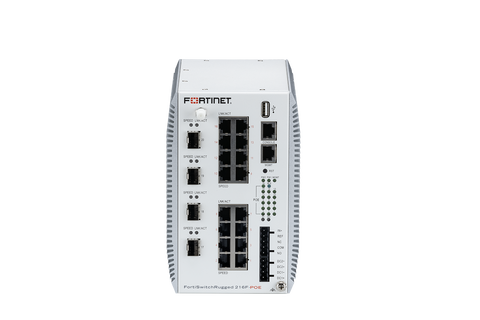

FortiSwitchRugged-216F-POE
SKU: FSR-216F-POE
Switching Capacity112 Gbps
Forwarding Throughput (PPS)166 Mpps
Form FactorDIN-Rail Mountable
PoE Power Budget360 W
- 16x GE RJ45 Ports (PoE)
- 4x 1G/10G SFP/SFP+ Ports
- 1x RJ-45 Console Port
$5,592.00

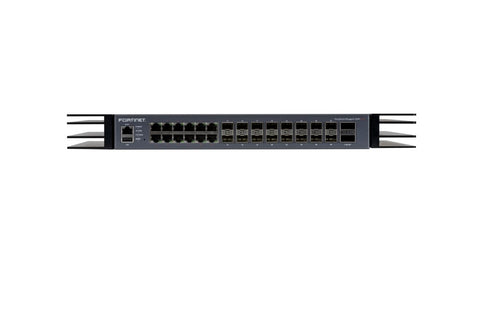

FortiSwitchRugged-424F-POE
SKU: FSR-424F-POE
Switching Capacity360 Gbps
Forwarding Throughput (PPS)536 Mpps
Form FactorRack-Mountable
PoE Power Budget421 W
- 12x 1/2.5GE RJ45 Ports (PoE)
- 12x 1/2.5GE SFP Ports
- 4x 10G SFP+ Ports
- 2x 40G QSFP+ Ports
- 1x RJ-45 Console Port
$11,130.00
No products match the selected filters.
More Information
Transceivers 11
| Product Name | Price | SKU | Description |
|---|---|---|---|
| 1GE SFP RJ45 transceiver module | $150.00 | FN-TRAN-GC | 1GE SFP RJ45 transceiver module 1 GE SFP transceiver module, range 100m, RJ45 connector, -40°C to 85°C, for systems with SFP/SFP+ slots |
| 1GE SFP SX transceiver module | $60.36 | FN-TRAN-SX | 1GE SFP SX transceiver module 1 GE SFP transceiver module, short range 500m, LC connector, MMF, 850nm, -20°C to 85°C, for systems with SFP slots |
| 1GE SFP LX transceiver module | $108.00 | FN-TRAN-LX | 1GE SFP LX transceiver module 1 GE SFP transceiver module, long range 10km, LC connector, SMF, 1310nm, -40°C to 85°C, for systems with SFP/SFP+ slots |
| 1 GE SFP transceiver module, 40km | $270.00 | FN-TRAN-SFP-1BD40 | 1 GE SFP transceiver module, 40km 1 GE SFP BIDI transceiver module, long range 40km, single LC connector, SMF, TX:1490nm/RX:1310nm, -40°C to 85°C, for systems with SFP+ slots (connects to FN-TRAN-1BU40, ordered separately) |
| 1 GE SFP transceiver module, 40km | $240.00 | FN-TRAN-SFP-1BU40 | 1 GE SFP transceiver module, 40km 1 GE SFP BIDI transceiver module, long range 40km, single LC connector, SMF, TX:1310nm/RX:1490nm, -40°C to 85°C, for systems with SFP+ slots (connects to FN-TRAN-1BD40, ordered separately) |
| 10 GE copper SFP+ RJ45 transceiver module (80m range) | $360.00 | FN-TRAN-SFP+GC-T80 | 10 GE copper SFP+ RJ45 transceiver module (80m range) 10 GE SFP+ transceiver module, range 80m, RJ45 connector, CAT6A, -5°C to 85°C, for systems with SFP+ slots |
| 10GE copper SFP+ RJ45 Transceiver (30m range) | $390.00 | FN-TRAN-SFP+GC | 10GE copper SFP+ RJ45 Transceiver (30m range) 10 GE SFP+ transceiver module, range 30m, RJ45 connector, CAT6A, -5°C to 85°C, for systems with SFP+ slots |
| 10GE SFP+ transceiver module, short range | $72.00 | FN-TRAN-SFP+SR | 10GE SFP+ transceiver module, short range 10 GE SFP+ transceiver module, short range 300m, LC connector, MMF, 850nm, 0°C to 70°C, for systems with SFP+ slots |
| 10GE SFP+ transceiver module, long range | $120.00 | FN-TRAN-SFP+LR | 10GE SFP+ transceiver module, long range 10 GE SFP+ transceiver module, long range 10km, LC connector, SMF, 1310nm, 0°C to 85°C, for systems with SFP+ slots |
| 10GE SFP+ transceiver module, (connects to FN-TRAN-SFP+BD27, ordered separately) | $308.10 | FN-TRAN-SFP+BD33 | 10GE SFP+ transceiver module, (connects to FN-TRAN-SFP+BD27, ordered separately) 10 GE SFP+ BIDI transceiver module, long range 30km, single LC connector, SMF, TX:1331nm/RX:1271nm, -5°C to 85°C, for systems with SFP+ slots (connects to FN-TRAN-SFP+BD27, ordered separately) |
| 10GE SFP+ transceiver module, 30KM long range | $308.10 | FN-TRAN-SFP+BD27 | 10GE SFP+ transceiver module, 30KM long range 10 GE SFP+ BIDI transceiver module, long range 30km, single LC connector, SMF, TX:1271nm/RX:1331nm, -5°C to 85°C, for systems with SFP+ slots (connects to FN-TRAN-SFP+BD33, ordered separately) |
Power Supply 2
| Product Name | Price | SKU | Description |
|---|---|---|---|
| DIN Rail Rugged Power Supply Unit | $510.00 | SP-RGDIN-240-PS | DIN Rail Rugged Power Supply Unit Pack of 2 units - DIN Rail Rugged PSU 90-264VAC/106V-300VDC Input, 240W/54V Nominal Output, -30C to 70C |
| DIN Rail Rugged Power Supply Unit | $630.00 | SP-RGDIN-480-PS | DIN Rail Rugged Power Supply Unit Pack of 2 units - DIN Rail Rugged PSU 90-264VAC/106V-300VDC Input, 480W/54V Nominal Output, -30C to 70C |
Antennas 4
| Product Name | Price | SKU | Description |
|---|---|---|---|
| External Antennas | $475.00 | FANT-3IN1-RND-5M | External Antennas Rugged 3-in-1 outdoor waterproof antenna supporting 2× 5G/LTE and 1× active GNSS connections, with an integrated 5-meter cable with SMA male connectors. Compatible with FG, FGR, FEX, and FEV models with cellular capability. |
| External Antennas | $575.00 | FANT-5IN1-RND-5M | External Antennas Rugged 5-in-1 outdoor waterproof antenna supporting 4x 5G/LTE and 1x active GNSS connections, with an integrated 5-meter cable with SMA male connectors. Compatible with FG, FGR, FEX, and FEV models with cellular capability. |
| External Antennas | $595.00 | FANT-5IN1-RCT-5M | External Antennas Rugged 5-in-1 outdoor IP69K and IK10 waterproof antenna supporting 4x 5G/LTE and 1x active GNSS connections, with an integrated 5-meter braided cable with SMA male connectors. Compatible with FG, FGR, FEX, and FEV models with cellular capability. |
| External Antennas | $895.00 | FANT-9IN1-RCT-5M | External Antennas Rugged 9-in-1 outdoor IP67 and IK08 waterproof antenna supporting 8x 5G/LTE and 1x active GNSS connections, with an integrated 5-meter braided cable with SMA male connectors. Compatible with FG, FGR, FEX, and FEV models with cellular capability. |
